Wine Quality Classifier

Objective

In this exercise there are 4 steps from data to deployed model onto the openshift cluster. For each of these steps, a Jupyter Notebook is prepared.

1. Data Explorations and Processing

Inside the first notebook we read the input data and perform some data exploration tasks. After processing and cleaning the data, it will be stored in a processed dataset.

Processed data will be then splitted into 3 datasets, train_dataset, test_dataset, and perfomance_dataset and stored in the corresponding directories.

2. Model Training and registration as well as Experment tracking

We take the preprocessed data and start training a model. The trained model as well as its performance and artifacts can be tracked using MLflow.

Usually, data scientists will not be satisfied with the first try. Hence, they will experiment with various sets of hyperparameters and different models. Next, these experiments will be compared on MLflow UI and the model with the best performance will be selected.

curl -X GET 'https://{us-south.ml.cloud.ibm.com}/ml/v1/foundation_model_specs?version=2024-07-25&filters=function_embedding'

3. Local model depoloyment with the help of MLflow

This model can be deployed locally using

mlflow models serve -m "models:/MODEL_NAME/MODEL_VERSION" --env-manager local --no-conda

But before starting the mlflow model server, the varialbe MLFLOW_TRACKING_URI should be defined:

export MLFLOW_TRACKING_URI=http://mlflow-mlflow.apps.cluster-db46l.dynamic.redhatworkshops.io

4. Model packaging and deplyoment on the Openshift cluster

Now that the model and its dependecies are pushed to the Github repository, we are ready to go to the openshift cluster and start building a container image for the model and deploying it on the cluster. finally we use the deployed model API to send prediction requests using a frontend application.

CC Logo CC Logo

There are two important hints:

Take care of the specific permissions for images deployed on Openshift cluster.

This line

RUN chgrp -R 0 /opt && chmod -R g=u /opt

should be added to the Dockerfile After below line:

RUN chmod o+rwX /opt/mlflow/

Configuring BuildConfig from Formular is prone to error. So use the below template and adjust the corresponding variables.

BuildConfig
apiVersion: build.openshift.io/v1
kind: BuildConfig
metadata:
  namespace: BUILD_CONFIG_NAMESPACE
  name: BUILD_CONFIG_NAME
spec:
  source:
    type: Git
    git:
      uri: 'https://GIT_REPO_URL'
    contextDir: /GENERATE_DIRECTORY_CONTAINER_FILE
  strategy:
    type: Docker
    dockerStrategy:
      from:
        kind: DockerImage
        name: 'python:3.9.4-slim'
  output:
    to:
      kind: ImageStreamTag
      name: model-clf:1.0

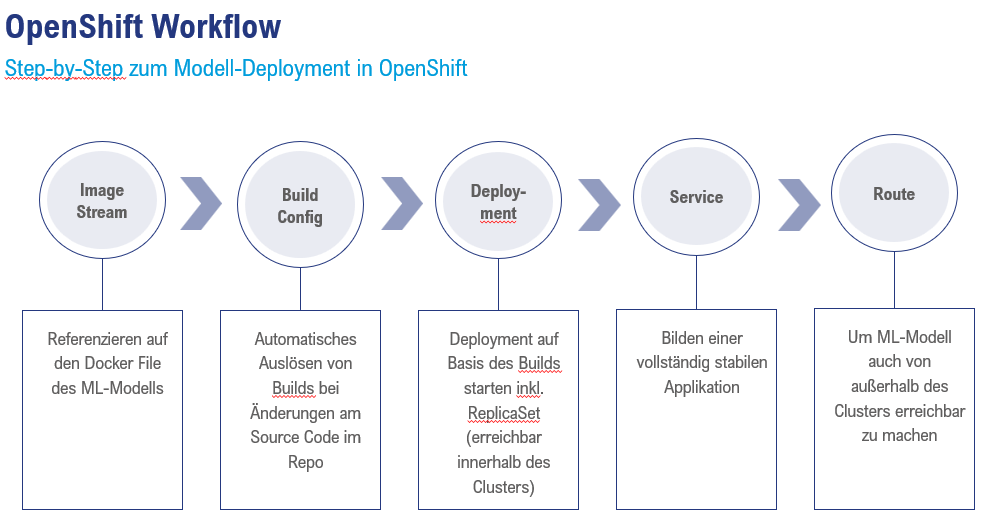

As shown in the image, we should create an ImageStream resource and then a BuildConfig to configure the image building process.

When the container is running and the model API is ready, we can send a test requests as follows:

test model API
# Send a prediction request to the depoloyed model on the OpenShift Cluster
BASE_URL = "http://model-clf-model-clf.apps.cluster-db46l.dynamic.redhatworkshops.io/"
endpoint = f"{BASE_URL}/invocations"
response = requests.post(endpoint, json=inference_request)

# Check if the response is successful
if response.status_code == 200:
    # Process the prediction response
    predictions = pd.DataFrame(response.json()['predictions'], columns=['Predicted Wine Quality'])

    # Combine predictions with actual classes
    actual_class_test = test_df_5['best quality'].reset_index(drop=True)
    model_output = pd.concat([predictions, actual_class_test], axis=1)

    # Rename columns for clarity
    model_output.columns = ['Predicted Wine Quality', 'Actual Wine Quality']

    # Display the final output
    print(model_output)

else:
    print(f"Request failed with status code: {response.status_code}")
    print(f"Response content: {response.text}")

5. Deploy the simple webapp

In order to consume the deployed model we will integrate it with a simple webapp. The code and Dockerfile for the app is in the same repository but in directory app_wine_Clf.

We deploy the app in its own project. Let's call it app-wine-clf. Then create an imagestream and a buildconfig.
